NavAssure® SAASM Dongle
Dual frequency SAASM P(Y) Code GPS Receiver Dongle for Rifleman Radio
Capabilities and Features

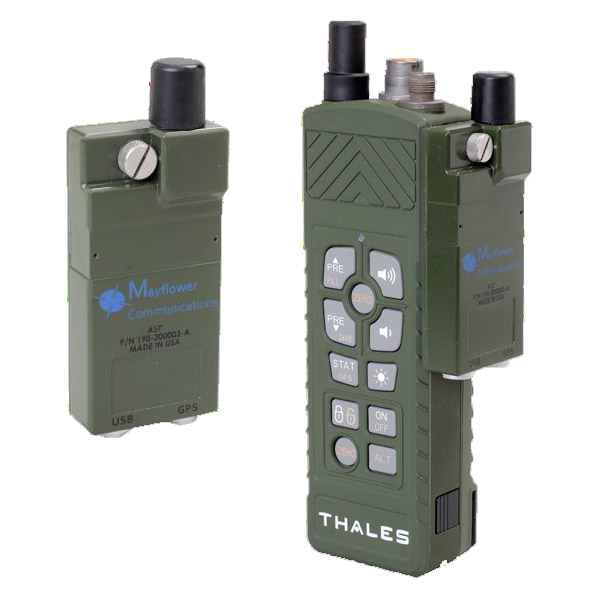

The NavAssure® Dongle provides SAASM GPS receiver-based secure position location information to the Rifleman Radio as an external attachment through radio’s Side Radio Interface Connector (SRIC). The Navassure® Dongle design is based on Mayflower’s small size, weight, and power (SWaP) NavAssure® microSAASM GPS receiver technology to service the most SWaP constrained applications. The NavAssure® dongle allows deployment of SAASM technology in the Rifleman radio without modifications to the radio.
Technical Specifications
- Radio Interface: Rifleman Radio’s SRIC interface with following interfaces with the radio
- COM1 (RS-232), 1PPS Out and Power
- Host Interfaces:
- COM2 (RS-232)
- Key Fill Port: DS-101
- PPS: 1 PPS In/1 PPS Out
- Protocol: ICD-GPS-153 (Outputs: PVT, PR/DR, Channel/Satellite/SAASM Status)
- Radio’s USB Pass-Through
- Temperature
- Operating: -40o C to +85o C
- Storage: -55o C to +125o C
- Built-In Test (BIT): 95% coverage
- Antenna Input: SMA
- Codes/Frequencies: L1 and L2 Simultaneous, C/A and P(Y)
High level Features
SWaP Metrics
Performance Metrics
NavAssure® is a registered trademark of Mayflower Communications Company, Inc.
The NavAssure® Dongle has been granted Security Approval by the GPS Directorate.
