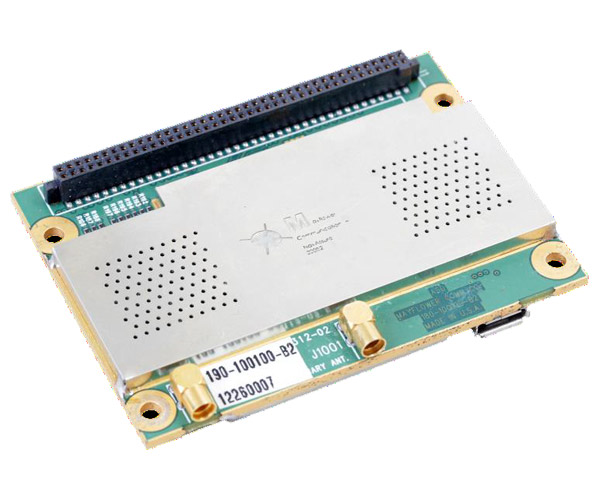

NavAssure® 200 SAASM P(Y) Code GPS Receiver in Type II SSI Form Factor
Type II SSI GB-GRAM Form Factor for SWaP-constrained applications.
Capabilities and Features
The NavAssure® 200 receiver is a SAASM receiver* in a standard Type II form factor. Designed from the ground-up to service the most SWaP-constrained applications, NavAssure® allows deployment of SAASM technology in platforms never thought possible. From embedded radios to artillery applications, to micro-UAVs and Blue Force Tracking applications, Mayflower’s micro SAASM receiver is redefining the military GPS receiver landscape. NavAssure® 200 is packaged in a Type II SSI GB-GRAM form factor.
The Mayflower NavAssure® 200 is offered through the United States Foreign Military Sales (FMS) program authorized by the Arms Export Control Act (AECA), as amended [22 U.S.C. 2751, et. seq.] Mayflower is authorized to sell this defense article and services to foreign countries and international organizations.
Technical Specifications
- Interface: 80-pin connector (Type II SSI GB-GRAM )
- Host Interface: COM1 (3.3 V LVTTL or RS-232), COM 2 (3.3 V LVTTL)
- Protocol: ICD-GPS-153 (Outputs: PVT, PR/DR, Channel/Satellite/SAASM Status)
- Key Fill Ports: DS-101 and DS-102
- PPS: 1 PPS In/1PPS Out
- Operating Voltage: 3.3 V +/- 10%
- Temperature
- Operating: 0o C to +70o C
- Storage: -55o C to +125o C
- Built-In Test (BIT): 95% coverage
- Antenna Input: Primary/Auxiliary, Active/Passive (MMCX Right Angle connectors)
- Codes/Frequencies: L1 and L2 Simultaneous, C/A and P(Y)
High level Features
SWaP Metrics
Performance Metrics
NavAssure® is a registered trademark of Mayflower Communications Company, Inc.
* The NavAssure® 200 has been granted Security Approval by the GPS Directorate
** Suitable for SWaP constrained embedded radio, UAV, and ground applications
