NavAssure® 125 SAASM P(Y) Code GPS Receiver
Ultra-compact dual frequency SAASM receiver for SWaP-constrained avionics and handheld applications.
Capabilities and Features

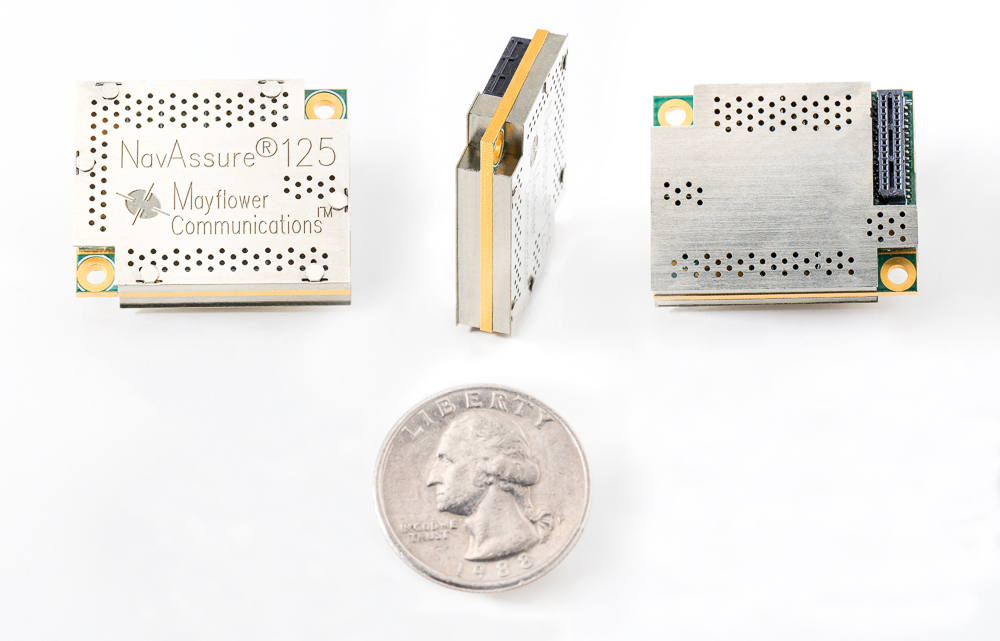

NavAssure® 125 allows deployment of SAASM technology in platforms never thought possible. The NavAssure® 125 receiver is the world’s smallest, lightest, and lowest power SAASM receivers*. Specifically, designed for the most SWaP-constrained applications, Hand Held Navigation Systems, Hand Held Tactical Radios, small Precision Guided Munitions (PGMs), micro-UAVs and body worn Blue Force Tracking (BFT) applications. NavAssure® 125 is packaged in a 1.25” x 1” PCB form factor.
The Mayflower NavAssure® 125 is offered through the United States Foreign Military Sales (FMS) program authorized by the Arms Export Control Act (AECA), as amended [22 U.S.C. 2751, et. seq.] Mayflower is authorized to sell this defense article and services to foreign countries and international organizations.
Technical Specifications
- Interface: 30-pin connector (Samtec SEMS-115-02-03.0-FG-D-K)
- Host Interface: COM1/COM2 (3.3 V LVTTL)
- Protocol: ICD-GPS-153 (Outputs: PVT, PR/DR, Channel / Satellite / SAASM Status)
- Key Fill Ports: DS-101
- PPS: 1 PPS In/1 PPS Out
- Operating Voltage: 3.3 V +/- 10%
- Temperature
- Operating: 0o C to +70o C
- Storage: -55o C to +125o C
- Built-In Test (BIT): 95% coverage
- Antenna Input: Passive (Hirose U.FL-R-SMT-1)
- Codes/Frequencies: L1 and L2 Simultaneous, C/A and P(Y)
High level Features**
SWaP Metrics
Performance Metrics
NavAssure® is a registered trademark of Mayflower Communications Company, Inc.
* The NavAssure® 125 has been granted Security Approval by the GPS Directorate.
** Suitable for SWaP constrained small UAS and handheld applications.
