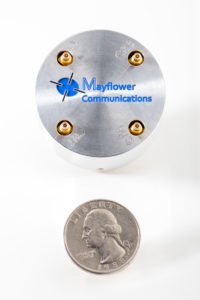

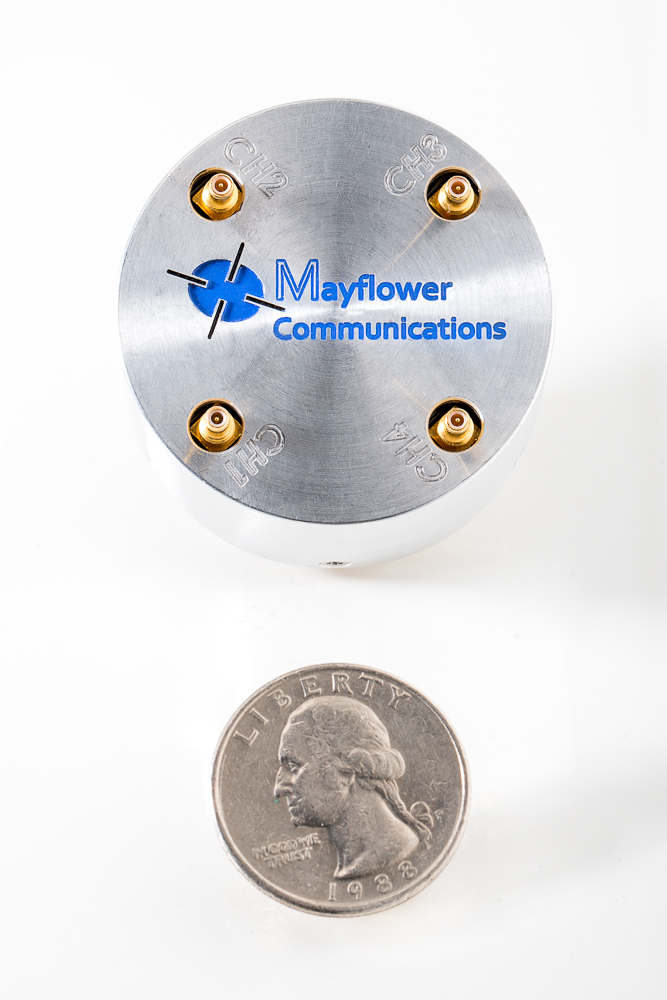

NavAssure® 100 SAASM P(Y) Code GPS Receiver
42 mm Round Form Factor for High Dynamic Projectile and Mortar Applications.
Capabilities and Features
The NavAssure® 100 receiver is one of the world’s smallest, lightest, and lowest power SAASM receivers*. Designed from the ground-up to service the most SWaP-constrained applications, NavAssure® allows deployment of SAASM technology in platforms never thought possible. From embedded radios to artillery applications, to micro-UAVs and Blue Force Tracking applications, Mayflower’s micro SAASM receiver is redefining the military GPS receiver landscape. NavAssure® 100 is packaged in a 42 mm outside diameter form factor.
The Mayflower NavAssure® 100 is offered through the United States Foreign Military Sales (FMS) program authorized by the Arms Export Control Act (AECA), as amended [22 U.S.C. 2751, et. seq.] Mayflower is authorized to sell this defense article and services to foreign countries and international organizations.
Technical Specifications
- Interface: 25-pin Host Connector
- Host Interface: 2 serial ports, 3.3 V LVTTL
- Protocol: ICD-GPS-153 (Outputs: PVT, PR/DR, Channel / Satellite / SAASM Status)
- Key Fill Port: DS-101
- PPS: 1/10 PPS Out, 10 PPS in
- Operating Voltage: 3.3 V +/- 10%
- Temperature
- Operating: 0o C to +70o C
- Storage: -55o C to +125o C
- Built-In Test (BIT): 95% coverage
- Antenna Input: Passive (SSMC Straight connectors)
- Codes/Frequencies: L1/L2 selectable, C/A and P(Y)
High level Features
SWaP Metrics
Performance Metrics
NavAssure® is a registered trademark of Mayflower Communications Company, Inc.
* The NavAssure® 100 has been granted Security Approval by the GPS Directorate.
** Suitable for SWaP constrained precision guidance projectiles and munitions.
